1982 Mazda RX-7 Series 2

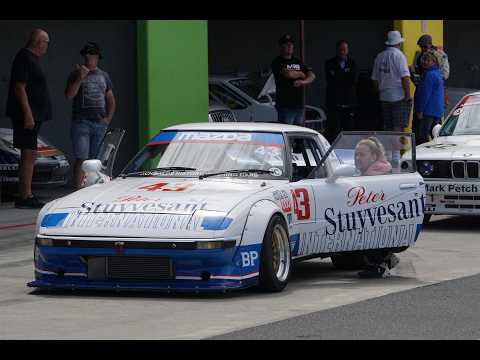

#43 Racing 1982 Series 2 Group C RX7

Built as a tribute to Allan Moffat and his championship winning Peter Stuyvesant's Factory Team car. The car was viewed and approved by Allan with the dash signed by him. The car was also used for one his final interviews.

Built by me in 2010 and has run every season since in Heritage and Historic race meetings. Alec Bell from KiwiRE and MADLAB has worked with me to develop the car to where it is today.

The overall car has been continuously developed and is one of the fastest competitive Group C cars in NZ. Regular winner and top place finisher. An all steel car weighing in 960kg, including working pop up headlights etc.

Maintained to the highest level.

13bPP fuel injected.
Focused on torque to be competitive with turbo and V8 historic Group C, Group A, ETC and BTCC race cars

- Current motor built using new parts 9 meetings ago by Alec Bell
- New rotor housing with CNC inlet and exhaust ports. Porting is based on genuine MFR race housings we have for reference.
- New factory side plates.
- S6 front plate with competition oil pump
- High compression rotors
- Iannetti Silver apex seals
- 2 piece 3 bearing crank
- Detail blueprint and balanced
- Custom designed, CNC fabricated large capacity, gated and windowed sump. No oil pressure issues.
- Custom one-off cast inlet manifold
- EFI Hardware fuel injected, with custom throttle bodies, butterflies.
- Custom air box and intake
- Custom Stainless exhaust and muffler.
- Exhaust has been continuously developed seeking torque.
- All V-Band and easy to remove etc.
- Custom UK manufactured special order PWR radiator core, with fabrication by BNR/MADLAB
- Custom large oil cooler
- Drop style fuel tank, pumps, surge tank and enclosure.

HALTECH ECU
- EGT and O2 sensors setup for a close loop management
- Twin MOTEC CDI’s
- Dyno tuned by Alec Bell
- Haltech dash with custom Stack design
- Milspec wiring and connectors
- New alternator (1 mtg)
- New LiIon battery (3 mtg)

Gearbox
- Quaife 6 speed 1:1 gearbox. (Easy to swap back to H-pattern dog box)
- Detailed rebuild including super finishing by Kayne Barry and all the latest mods (3 mtgs)
- New heavy duty roller bearing rear housing upgrade
- Gearbox cooler and pump
- Brand new Tilton 2 piece rally clutch and hyd release bearing (1 mtg)
- New 2 piece competition driveshaft
- Toyota Hilux diff 4.9 LSD Large axle.

Suspension
- KONI custom build race shocks
- Front large diameter shaft shocks (2 mtgs)
- Rear rebuilt (4 mtgs)
- Series 3 large stub axles
- Custom billet and high tensile front hubs with large race bearings
- Custom Rear 4-link with adjustable roll center watts link
- Front suspension uses modified techno tuning arms with adjustable sway bar
- Very rare TRD competition quick steering rack. Rebuilt.

Brakes
- Front AP Pro 5000 4 pot
- Endless 305mm x 34mm 2 piece floating discs
- full custom ducting
- Rear willwood 4 pot
- Wilwood 2 piece 315 disc
- Wilwood Pedal box with dash mounted balance adjuster.
- Endless pads and brake fluid

Windows
- UK sourced heated front screen
- Lexan door and rear windows and hatch
- Motorsport spec blower onto front screen (installed prior to the heated screen)

Wheels
- ARROW custom 3 piece wheels
- DRY 15x 10” x 8 off
- Hoosier A7 275 slicks
- WET 17x 10” x 4 off
- Hankook 245 wets

Bodywork
- Group C kit
- Front spoiler custom built with longer front splitter as per 1984 spec car
- Aluminum under tray.
- detailed accurate Stuyvesant team sign writing

Interior
- Brand new Sparco seat
- Brand new Sparco 6 point harnesses
- New large diameter Sparco steering wheel
- Original door panels and rear panel work
- Dash signed by Allan Moffat

Spares available
- Fiberglass bonnet, guards, doors available but never used.
- spare used slicks.

*VIDEO clip is the last time it raced in April 2026 in the HVRA/HERITAGE Race class. Car is as raced...but cleaned.
